Cuckoo Clock Parts

Providing cuckoo clock parts

CUCKOO CLOCK MOVEMENTS

REGULA

1 Day (Regula 25)

Most popular one day weight driven cuckoo clock movement. Comes with chains, hooks and rings. This movement uses two weights at 5/8 LBS (275 Grams) each. The pendulum is the Smaller one day size.

3 3/4 Deep
3 5/8 Wide
3 5/16 High

Item # R25 --$119

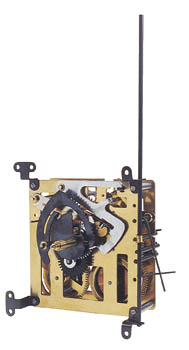

cuckoo movement

8 Day (Regula 34)

Most popular 8 day weight driven cuckoo clock movement. Comes with chains, hooks and rings. This movement uses two weights at 2 1/4 LBS (1000 Grams) each. The pendulum is the Larger 8 day size.

4 13/16 Deep
3 9/16 Wide
3 5/16 High

Item # R34 --$139

R25 (73 x 63 mm)	2 weight 1 day	$119	19.5 cm
R25/24	3 weight 1 day	$159	19.5 cm	5.8 cm
R25/24L	3 weight 1 day	$159	23.5 cm	5.8 cm
R25/41 (73 x 73 mm)	3 weight 1 day	$159	23.5 cm	7.4 cm
R25/51	3 weight 1 day	$159	23.5 cm	8.5 cm
R34 (85 x 76 mm)	2 weight 8 day	$139	19.5 cm
R34/44	3 weight 8 day	$249	28.5 cm	8.1 cm
R34/46	3 weight 8 day	$249	23.5 cm	8.1 cm
R34/59	2 weight 8 day	$139	40.0 cm
R34/63	2 weight 8 day	$139	23.5 cm
R34/66	2 weight 8 day	$139	28.5 cm
R35 (77 x 75 mm)	2 weight 1 day	$149	28.5 cm

1 CM = 10 MM

25.4 MM (2.54 CM) = 1 inch

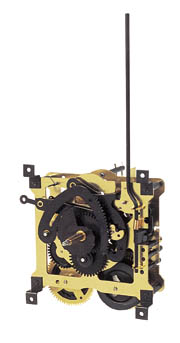

cuckoo movement

**HUBERT HERR**
KW60 (62 x 68mm)	2 weight 1 day	$139	Pendulum	Dancer table
KW60/1RM	3 weight 1 day	$159		66 mm
KW75 (75 x 75 mm) This movement is no longer made. What we would send is the R35S and some modifications may have to be made to the case.	2 weight 1 day	$139
KW80 (85 x 90 mm)	2 weight 8 day	$139
KW80/RM	3 weight 8 day	$239		6.6 cm

1 CM = 10 MM

25.4 MM (2.54 CM) = 1 inch

Plate Sizes:	Dancer table height measured from the handshaft
62 x 68 mm = 2 7/16 x 2 11/16 in
75 x 75 mm = 3 x 3 in
85 x 90 mm = 3 3/8 x 3 1/2 in
73 x 63 mm = 2 7/8 x 2 1/2 in
73 x 73 mm = 2 7/8 x 2 7/8 in
85 x 76 mm = 3 3/8 x 3 in
77 x 75 mm = 3 1/16 x 3 in	1 in = 2.54 cm = 25.4 mm

Pendulum length measured from the suspension post to the center of the pendulum leaf

19.1 cm = 7 3/4 in

40 cm = 15 3/4 in

23.5 cm = 9 1/4

60 cm = 23 5/8 in

28.5 cm = 11 1/4 in
