Clockworks

AUTHENTIC EIGHT DAY AMERICAN STYLE

Solid brass movements that are excellent replacements for movements that are beyond repair or to put in a new clock. Accurately reproduced American style movement reproduced with heavy plates, oil sinks and front mount pendulums. The center shaft / arbor configuration will match up to many original dials. All styles come either just the movement or you can get it complete with hands, key, gong, gong base and pendulum. The "drop" is the pendulum length from the center of the handshaft down to the bottom of the rating assembly.

Front Mount

For black mantle and tambour clocks

• Plates: 5 1/4" x 3 5/8"
• Minimum case width for pendulum swing: 2 3/8"
• Minimum case depth: 3 3/4"
• Drop: 4 1/2"
• Handshaft length: 1 3/4"
• Part number P1127

31-DAY KOREAN REPLACEMENTS

Rack and snail movements that strike on the hour and the half hour. Each is complete with a pendulum, hands, key and a gong. Plate size is 3 11/16" wide x 5 1/16" high. Winding arbor is 2 3/4" from center to center. Winding arbor to the handshaft is 1 11/16" Choose from four different pendulum lengths.

The "drop" is the pendulum length from the center of the handshaft down to the bottom of the rating assembly.

Roccoco Clocks

Supplied with 16" long brass lyre pendulum with 5 1/2 bob.

• Plates: 3 11/16" x 4 15/16"
• Pendulum swing: 8"
• Movement depth: 4 5/8"
• Drop: 29"
• Handshaft length: 2 1/2"
• Part number P959

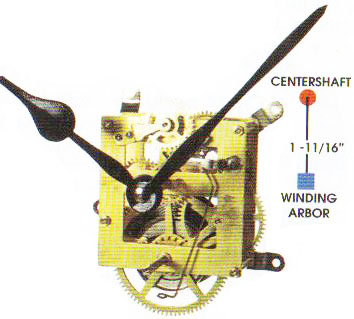

Time Only Mechanical

For Banjos, Shop Regulators, and School clocks that do not have a strike mechanism part number P546

Plates: 3 5/16"
Minimum Case Depth: 3 3/4"
Minimum Case Width for Pendulum Swing: 6 /14"
Handshaft: 2"
