This note explains quartz clock movement removal from the case. The following does not apply to quartz units made in Germany or inserts. To remove the movement, need access to the back of the clock and the front side of the clock dial. There are so many case designs it would not be possible to cover all of the different variations. The clock case went to together so it comes apart. It may take a bit of probing but there is always a way to take it apart because it went together.
Getting access to the dial area
There are many case designs and styles and there is no way for us to know how the current specific clock went together. Most of the time the removal process is very easy but of course there are some instances where it is not user friendly. Thus, it is on the users end to be able to access the dial and movement area to continue with the swap out.
Clock hand removal
Quartz clock movement removal always needs the hands to come off first. There are two reasons for this. First, need to have access to the hardware that mounts the movement. Second, there is no way to take get the movement out of the clock if the hands are still on it. They certainly will not fit through the hole in the clock.
Quartz Clock Movement Removal - Minute hand
Quartz clock movements have two styles of minute hands. One style has a nut that holds it in place and the other style is a friction fit. The friction fit has no nut and just pulls off with a twist and pull. The second style has a minute hand nut to secure the minute hand. Removal is done by turning the nut to the left with needle nose pliers. Once the nut is loose it only requires fingers to unscrew it.
In a Quartz clock Movement removal task, the hour hand is only a friction fit. Thus, the hour tube tapers down on the movement, meaning it is wider on the low end of it. This makes the hour hand friction fit only. Just twist the hand and pull it until it comes off.
The second hand pulls straight up and off if the clock has one.
The following is the basic installation for a chiming quartz movements from Clockworks. However, each unit is varied with the chime functions and speaker style. Therefore, the individual instructions need to be read for this information.
Installation of the chime quartz clock movements is done in the following sequence.
1. Hanger and rubber washer
Hanger goes on the new movement first if there is one, and then the rubber washer. Both go over the post that sticks out the front of the movement. The separate hanger is how the QU22 is shipped, where as the QU30 has it molded as part of the movement, and QU40 does not get one.
2. Installation of the chime movement
The post goes through the back of the dial toward the front. Install the brass washer and hex nut on next to secure the movement to the back of the clock dial. A clock dial is the part with the hands and numbers on it and is also called a clock face. Know the names of the parts is always helpful in completing a quartz movement installation.
3. Hour hand
The hour hand goes on as a friction fit. All it needs is just a twist and push motion.
4. Minute hand
The minute hand has an oblong hole and mounts onto the oblong shaft at the end of the unit. Therefore, the minute hand needs the nut to secure it.
5. Second hand
Additionally, if there is a second hand this goes on just by a friction fit and this would be last. Use fingers to push it onto the pin that is in the center of the post.
6. Finishing up
In conclusion, to complete the chime quartz movement installation, turn the minute hand to make it chime and strike out the hours. Point the hour hand to whatever hour it rang out. Take the minute hand off the clock and reinstall to point close to the 12.
7. If the chime is not on time
Given these points, if the minute hand will not point exactly on the top of the hour, here is the correction. Locate the circle hand setting knob on the back of the movement. Hold knob still this still with fingers while turning the minute hand to the top of the hour. Next time it will point right at the 12 mark when it chimes. This is the end of the chime quartz movement installations.
Please select the post length when ordering a new quartz clock movement. Of course, when doing quartz clock movement measuring, remember the post will need to be able to go through the thickness of the dial face. Also remember that the dial may or may not have a wood backing to it. With a wood backing the clock dial or face would be thicker and thus would need a longer post. Clockworks offers multiple post lengths on quartz clock movements for this reason. In other words, the post has to be long enough to go through whatever thickness we are calling the dial.
What to measure
Clockworks offers multiple post lengths for quartz movements. When completing a quartz clock movement measurement, you will need to measure the post on the old movement. This is so it can match up with the new quartz movement. To clarify, the post is the part that goes through the dial (face) and mounts from the front and what is in a quartz clock movement measurement. This applies to all Clockworks quartz movements, including chiming quartz, and time only quartz movements.
Length depends on dial thickness
When working on a quartz clock movement measurement the post has to be long enough to go through whatever thickness that the clock face/dial, might be. The length of the threaded portion of the post/shaft, is the measurement needed. The threaded shaft needs to go through the dial/face of the clock from the back to the front. It needs to be long enough for a small hex nut to screw onto it. It can’t be too long or the hands will not move correctly. Clockworks has a variety of quartz clock movement lengths to accommodate a variety of different materials since some are wood and some are metal and some are plastic, etc.
Above all, when replacing a quartz movement it means measuring quartz post lengths. Subsequently, the post will stick out through the front of the clock dial. Of course, there needs to be enough threads sticking out for the hex nut to be put on. Hence, the movement will be held in place to the back of the dial (clock face) and will not move. Sometimes if the clock has glass over the face it is possible for the post to hit it. Therefore it is important to measure the quartz post length correctly. In other words, if the post hits the glass, the hands will not be able to move. Thus making the clock not work.
Use the chart if building a clock
With that being said, find the correct quartz post length by using the chart below. So remember, the threads on the post need to be at least 2/16 longer than the thickness of the clock dial. To clarify, a clock dial is the face (also called the thing with the numbers on it). As always, email us if there is any question.
Measuring quartz post lengths if replacing a clock
If replacing a movement and not building a clock, it is easier to measure the quartz post length of the old movement. Before measuring, remove the movement first by taking off the hands and then the hex nut. Next, measure the length of the post that has the threads that the hex nut was on. In short, only measure the fat part of the hand shaft that we call a post. Also, never include the part that the hands go on when measuring the post length. All in all, the new unit needs to be the same post length as the old movement. Overall, this applies to all quartz clock movements available on Clockworks such as chiming quartz and time only quartz.
The clock face that the battery movement post will go through is a dial. This is the face of the clock with the numbers on it. Dials are available in two styles, Arabic (regular) numbers, or Roman (XII for 12) numbers. Dials also come in many shapes and sizes. Larger dials may require a High Torque clock movement instead of a Low Torque unit. A High Torque unit is mandatory when the dial is over 10 inches wide. This is measurement is from outside the 9 directly across the face to outside the numeral 3. This is the time track diameter.
The post is the part that has the threads that mount the movement to the back of the dial with a hex nut on the front. They all come 5/16 wide, except for the QU22 unit. The QU22 has a 7/16 wide post, unlike the rest of the quartz units. The lengths are variable and are chosen upon ordering the clock movement.
Hex Nut =
A six sided nut, this is the nut that attaches to the post threads that go through the dial from the back to the front. It secures the movement to the back of the clock dial. This should be tightened enough so the movement will not turn if the clock case gets moved.
Included, but optional in use, is the steel part that allows the clock to hang on the wall. This slips over the post with the threads before the movement mounts to the back of the dial. Therefore would have the hanger at the top of the movement and will allow it to be hung on the wall. Usually made of steel, they are sometimes aluminum. All of the time only quartz clock movements will come with this hanger, but not all of the pendulum units.
Quartz Clock Movement Definitions - Hands
Sometimes called pointers, needles, arms or hands, these are the things that point to the time. In short, the hour and minute indicators that tell what time it is. Therefore, to order the clock hands, measure the length of the minute hand. Measure from the center of the mounting hole to the end of the minute hand. Similarly, the hour hand is proportionally smaller and comes with the minute hand as a set. Moreover, the minute hands we sell for the quartz units have an oblong mounting hole and the hour hand has a round hole. This is known as the American standard "I" shaft style. Comparatively, China uses a different style. Their style has a round mounting hole in both the hour and the minute hand. All of our American style quartz clock hands fit all the quartz clock movements we sell. They are the standard "I" shaft as described.
Quartz Clock Movement Definitions - Second Hands
The optional skinny pointer that ticks out the seconds. The mount on the quartz second hands are just a press and friction fit. There is a post that sticks out of the backside to mount it. This tube fits over a pin that is inside of the quartz clock movement hand shaft post. Thus, the second hand post fits down into the end of the hand shaft and mounts via friction fit. There are two styles of time only quartz clock movements, step motion and continuous sweep motion. So the step unit will run this second hand in a jumpy one second interval. Then the continuous sweep movement runs the second hand in a fine, constant scrolling sweep motion around the dial instead.
Hearing a bonk, bonk, bonk all day and night? This is because the Quartz-pendulum hits the sides of clock-case with each swing of the bob. It may not stop the clock, the clock might work just fine, however the knocking sound of the pendulum hitting the sides of the clock case can be annoying. Lucky for us the correction is fairly simple on these pendulum quartz clock movements.
Why a quartz pendulum hits the sides
In essence, there are only two reason that this might happen. Certainly, the most common reason is the size of the bob. The bob may be too large for the case. Another less likely reason is that the magnet on the movement is too strong. Both of these problems are an easy fix.
There are two easy fixes for this. The pendulum bob can be swapped out for a smaller sized bob. Therefore the bob never reaching the sides of the case. Or lessen the strength of the magnet on the back of the movement itself by using tape. I have heard of this being done with masking tape with good results. The masking tape creates a slight barrier to lesson the magnetic pull enough to reduce the swing of the pendulum. Therefore the pendulum swing will be less and not hit the sides. Either fix will work, making the clock will again be quiet.
When swapping a bad unit out, the post will need to be measured and matched with the new chiming quartz movement. The post is the part that goes through the dial (face) and attaches with the hex nut.
Chiming Quartz Clock Movements
-Runs a minute hand up to 5″ long-
Assistance = 800-381-7458
Dial (Hole) Thickness
1/16 inch thick
3/16 inch thick
5/16 inch thick
9/16 inch thick
3/4 inch thick
Size Threaded Post Needed
About the pendulum
Pendulum can be shortened to anything less than 16 inches by bending and snapping off to size. What allows this to happen are small cuts each inch on the back side of the brass colored rod. The bob is the round disk at the bottom of the pendulum and is available in three bob diameter options.
Post to be measured
Post length listed is the fat threaded part that goes through the dial and attaches with a hex nut. The section that the hands go on is 1/4 inch longer than this post. To replace a bad unit, only measure the threaded post that mounts the movement by hex nut.
#QU30 Chiming Seiko (Great Sound)
3 1/4″ x 5 1/4″ x 1 5/16″
Seiko durability in a chiming quartz clock movement. Will play either Westminster or Whittington on the quarters, and then strike out the hours on the top of the hour. It has an optional autonight silence switch and volume control. The pendulum and clock hands are sold separately.
Automatic night silence switch
Will run a 16″ pendulum or shorter
5/16 Diameter post

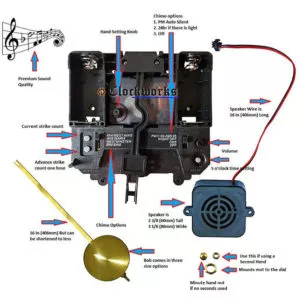

#QU40 Four Melody Chime (Best Sound)
4 9/16″ x 4 3/4″ x 1 1/8″
Song options: Westminster every quarter or Westminster, Ave Maria, Bim Bam options on the top of the hour only. Includes a light sensor and will be silent automatically if it’s dark in the room. The pendulum and hands for this unit are sold separately.
Will run a 16″ pendulum or shorter
AutoNight Silence Switch
Light sensor for chime off
#QU22 Westminster C-cell (Good Sound)
3″ x 4 3/4″ x 1 1/4″
Takane Westminster chiming quartz clock movement. This movement is simple in design and to use. There is not a lot of options to figure out and costs less. The chime is the electronic type and comes out of a built in speaker. So no speaker to mount, not many settings, simple, economical, compact and effective. The pendulum and hands are sold separately.
Will run a 16″ pendulum or shorter
Built in speaker
7/16 Diameter Post
#QU3 Time and Pendulum (No Chime)
2 1/8″ x 3 3/4″ x 7/8″
This is a non-chiming pendulum unit. Hardware for installation is included. Enjoy the swing of the pendulum without any chiming sound. Pendulum and clock hands are sold separately.
Time and pendulum quartz clock movement, pendulum and hands sold separate. This is a strong unit that can run hands up to 11 inches long. This length is based on the minute hand length from the mounting hole to the end. [bulk-discount-shortcode sku="QU3"]
Best sound quality on the market. This unit will chime as if it was a big grandfather clock. Also has volume control and an automatic night silence option. Please scroll down on this page to read all about it. [bulk-discount-shortcode sku="QU40P"]
The pendulum drive is a heavy-duty battery unit that can swing any mechanical clock pendulum. Uses only two C cell batteries and is very strong. It test ran fine with the largest metal pendulum produced in the modern world with added weight, swung no problem.
Seiko durability in a quartz chiming clock movement. Plays choice of Westminster or Whittington on the quarters and then strike out the hours. Has an auto night feature if the chimes are not wanted at night.
Please select the hands from the next page if you need them, just click Add To Cart and they will show up. 4x4 Westminster Chime Chime synchronization knob Takes one C cell battery Made by Takane Built in speaker 7/16 Diameter Post Low price chiming unit that does not take up much room. The bob is the round disk on... View Product
Non-Pendulum Chiming Seiko Quartz Clock Movement is a quality C cell dual chime movement by Seiko. Will play either Westminster or Whittington on the quarter hour. Available in a variety of post lengths, with or without a pendulum.
Replacement movements for the German made Hermle quartz. These chiming units take two C-cell batteries and play two different songs. Well made German quartz movements that last for a long time, but seem to give up the ghost during daylight savings when they do die.
