The identification process is the first step to replace a Kieninger clock movement or any other components. To begin with, start with the movement number in order to purchase a new clock movement and to see the price and what it includes.
116CM = This is the pendulum length, in centimeters, from the top of the movement all the way down to the bottom of the rating nut. This is true only for the smallest 4 1/2 inch bob diameter.
Dating the Kieninger movement
In the above description, 81 is the date, however this is not always true in later years. After a certain date that first number is no longer the date that it was made. Rather that first number became an engineering code that has nothing to do with the date.
So it may or may not be the date code, ignore this as it is not pertinent to replacing the unit. There is no longer a solid way to date the Kieninger clock movement unless there is a stamp on the back plate.
We can help
The new movement will fit into the clock case just as the old one did. Keep using the same components such as the dial, pendulum, chime block and weights.
If it is a weight driven clock it will come with the chime hammers as well as chains or cables. If this decoding process is confusing, just email the numbers or a picture to us. We are happy to help with figuring out the best course of action. Similarly, Kieninger clock movement questions and ordering can be done by phone as well.
Kieninger clock movement ordering starts with the numbers off of the back plate of the clockworks. The numbers help us figure out the correct unit by plate size. After we get the plate size we narrow it down by attributes such as triple chime.
In other works all the units that have the letter K on the back will have the same plate size. After we determine we have a K series we select things like triple chime or Westminster only. If there are any other uncommon things after that we select it. Such as sequential or carousal or other special qualities such as this.
Steps to a new Kieninger clock movement
First go to the letter that is also on the stamp on the back plate of the movement only. If for example the movement number is 81 K 116cm ignore all but the K at first.
On that same drop down list with the CM list there are some other options usually. The options to select are the specific qualities the movement may or may not have on the movement. Such things as Westminster only or triple chime.
If there are dancers on the movement it may say carousel. Just pick the whatever movement you have that matches the options.
After ordering the Kieninger movement
After ordering the new Kieninger clock movement you will receive a receipt via email. The installation instructions will also be sent via a link on the receipt. Weight driven units will include chains or cables.
The new movement will ship the next business day by FedEx ground or Priority Mail.
New clock movement benefits far outweigh the benefits of a restoration. This section will explain why that is and what the best course of action is to get your clock working.
Servicing the movement
Clocks need to have fresh oil after 10 years or so. Then, after 20 or 30 years, a full break down of the movement is necessary. This is all well and good and can be done with the old movement.
The movement will run for another 5 or 15 years with no issues but then it will be time to do it again. So obviously this is a new clock movement benefit.
Every time the movement needs to have work done on it or needs bushings, it will last less and less time before it needs attention again. So another new clock movement benefit is that this would not happen.
The repair process is expensive because it takes time to separate the plates, remove all the gears, do the necessary work, and then put them all back together again.
This process may need to be redone if not perfect the first time. The turn around time to complete an overhaul on a clock movement could be anywhere from 1 to 3 months, and in some extreme cases, a year.
It is a slow moving venture that costs twice as much as a new movement would. If a new clock movement is not available, then this is the best, and only, way to handle a clock repair.
Replacing with a new clock movement
If the clock movement is still in production, it is far better to just get the new clock movement. Mass production makes the movement so affordable it will cost a fraction of the price of the repair work.
The new clock movement will be the same one but brand new and ready to run 30 years without much complaint. There is absolutely no way to repair an old clock movement so that it is better than new.
Even the best clockmaker using the best equipment cannot make the clock movement better than a new one.
A new clock movement is a factory fresh restart. The clock will be like it was originally when you first made the purchase from the store. The new clock movement will be made by the same people, with the same machines, and the clock movement is the same.
It is not a close replica or made somewhere else besides Germany. It is the same movement. Not a knock off or replica. So wouldn't it make sense to get the new clock movement instead of chasing the old?
The choice is clear and obvious. The new movement will cost a fraction of the price and the clock is up and running in no time.
Movements That Would Need a Repair or an Overhaul
If a new clock movement is not possible, then a repair is most likely the only option. However we will try to convert it to a new clock movement that is close and easy to adapt.
If it is not an easy one to adapt, or would take too much case work, then the best solution is to have us work on it. Another clock movement to consider having restored instead of replacing it is the tubular bell, which is a high end movement.
The price of a tubular bell new clock movement makes an overhaul more attractive. This is due to the high price on the new clock movements which is over $1600.
Usually the price is less for the new unit but instead these new clock movements are more costly than the overhaul by Clockworks anyway.
We can charge a much lower amount for the complete overhaul on these units. Ultimately the choice is yours. There is a good argument in both directions that makes sense on these expensive new clock movements.
Clockworks = The best repair service
We would love to do the clock movement overhaul here at Clockworks and we do the best job. There are two ways to fix clocks; the easy way and the hard way. We only repair clock movements the hard way with no short cuts.
Even with new clock movements, we inspect them and make sure all is well before shipping them out. It is even more important for us to do your repair than another company because we do not go to your house. There is no one being intrusive in your home and possibly damaging your clock case.
The clock movement itself is the only item that gets sent to us. No components need to be sent since we have everything else here such as weights, dials and pendulums. It is a great advantage to have Clockworks work on your clock movement for this fact alone.
A clock supply depot such as us does not need to wait for parts. We possess everything we could possibly need to complete a thorough, professional clock repair right here. If a new clock movement is not possible, then this repair is your best and only option.
The new movement
New clock movement benefits usually do indeed outweigh the repair option. The movement will already have lubrication with clock oil so there is no need to oil it.
This is everything that comes out when you remove the two screws that are under the clock movement, besides the dial and weights.
Once you get the hands and the clock dial out of the way (instructions are sent via email) it's only a matter of removing the two screws from underneath.
The new clock movement can then be put in by someone with experience in 10 or 15 minutes. A person with no experience will take longer, but the point is that it isn't hard to do. This is definitely a new clock movement benefit.
There are some instances where a clock case was made in an annoying way that makes it more difficult, but for clock movements that were in a mass production this is not the situation. This relates more to a few individual clockmakers who's design of the case makes it more tricky to get the new clock movement in or out.

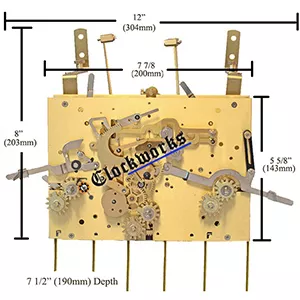

The K units are the most frequently made, primarily because they belong to the 3 weight movement series introduced by Kieninger. Notably, these units boast a hand shaft length of 47mm, extending from the front plate of the movement to the end of the minute hand nut threads. Furthermore, on the back plate of the movement, one can find a date code followed by the letter K and the CM length. Thus completing the comprehensive information that you need to identify the movement.
The MS / MSU variants feature a hand shaft length of 47mm extending from the front plate outward. Moreover, the movement is likely to include a date code, followed by either MS or MSU, and subsequently indicating the CM length. These details can be found conveniently on the back plate of the movement, typically appearing as, for instance, MSU 116CM. Additionally, it’s worth noting that the MSU Kieninger Clock Movement is interchangeable with the KSU, as they are essentially identical units albeit with a slightly lower grade.

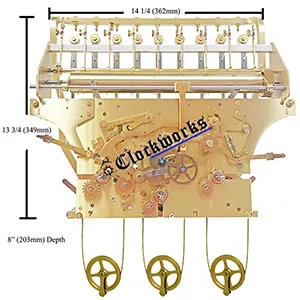

The 9 tubular bell clock movement is the largest among the Kieninger Clock Movements. Remarkably, this movement represents the only Kieninger 9-tube variant. If your movement has 9 tubes, a Kieninger label, and operates via cable, this unit is ideal. Surprisingly, this unit is easy to install and configure, despite its imposing appearance.

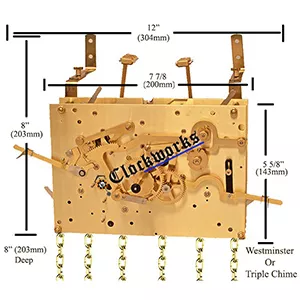

The large 6 x 9 chain driven clock movement bears the Kieninger label and 116cm. It comes in two variations: Westminster (8 hammers 4+4) or triple chime (12 hammers 4+8). Both options feature a hand shaft length of 56mm, spanning from the front plate of the movement to the end of the minute hand nut threads. Notably, the unit does not indicate the series but includes the date and CM information exclusively.

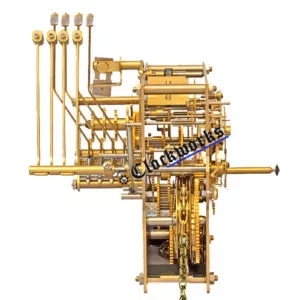

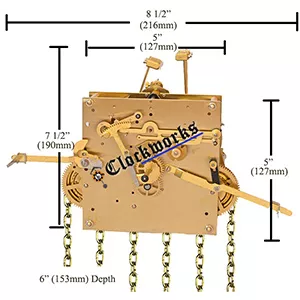

The Square Westminster chain driven Kieninger Clock Movement displays a notation like 79 RK 93CM on the back plate. The hand shaft measurement extends from the front plate to the end of the minute hand’s rating nut threads.

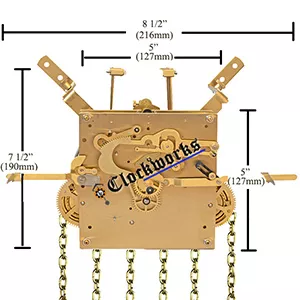

The Square triple chime chain driven movement will display something like 79 R 93CM or 81 RU 116cm on the back plate. The hand shaft measurement extends from the front plate to the end of the minute hand’s rating nut threads.

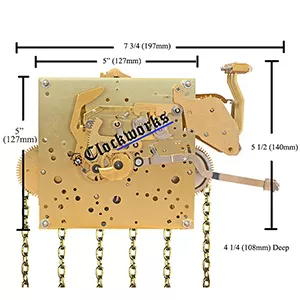

The Square, Westminster chime, chain driven Kieninger Clock Movement will have markings like 79 SKS 116CM or 80 SK 116cm on the back plate. The hammer location is either 8 (4-4) at the back or 5 hammers on the side. The hand shaft length in this series measures 36mm.
The PS and PSO models are compact cable driven units with separate weights for time and gong strike. These Kieninger Clock Movements feature a single hammer for the gong strike. They come with the necessary components such as the leader, suspension spring, hand nut, cables, and pulleys. When replacing the existing movement, the back plate may display a date code followed by PS or PSO, and a CM number, such as 80 PS 65CM.

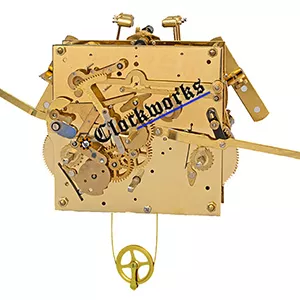

These Westminster chime RWS wall clock units typically feature one weight, two springs, and 8 (4+4) hammers on the back. However, if it’s a side strike, there will be 5 hammers on the side. The CM number, like 81 R 65cm or 80 RWS 80cm, will be located on the back plate indicating the date of manufacture, series (R), and pendulum length. This movement is highly favored for regulator-style wall clocks.
The Westminster chime features 5 hammers positioned beneath the movement. Unlike traditional pendulum-driven movements, this Kieninger Clock Movement is spring driven and utilizes a balance escapement. Although the back of the movement may display AEL01, AEL02, or AEL12, they all refer to the same AEL movement. Notably, the movement boasts a 32mm hand shaft length extending from the front plate to the end of the minute hand nut threads.
The APL unit, unlike the AEL units, utilizes a pendulum instead of a balance wheel. Additionally, the movement offers two distinct hand shaft options, which are measured in millimeters from the front plate to the outer end. Since it is a pendulum unit, the back of the old unit will display a CM mark. Match this CM number with the options provided below.
This is the triple chime spring driven Kieninger Clock Movement series with a balance escapement. The movement comes in two different hand shaft lengths. This is the measurement in mm from the front plate of the movement all the way out to the end of the minute hand nut threads.
This is the 9 bell set that you may need for the RWU or the KSU 9 bell top movements. They are sold separate from the movement as they are very expensive. You may or may not need these if you are just replacing an old unit.
The J series movements can be problematic. If you order the J series please be advised that you may have to wind the movement two times in a 8 day period rather than once. Also, there is a plastic cover over the platform balance versions. This plastic always cracks by the time it gets to the customer and is common to remove this cover all together. Just consider it a protective cover for the balance during the shipping process and discard it. The plastic cover is not a warranty item as it’s only to protect the balance during shipping.
The new Kieninger AEL12 movement replaces the AEL01 and AEL02. It’s platform has a new design with a material that is 10 times harder than the original plastic. Many are replacing the balance platforms on the older units. We are offering a new movement with this new design in the platform because the new balances are not yet available separate from the movement. The movement also now has removable winding arbors as well as the double clock safety winding system. Note that it also interchanges with the Hermle 340-020 unit.
Replacing a movement is less costly than a overhaul. The K series clock movement last 25 years before needing an over haul, but since its still being made at a fair price it is so much better just to replace.
Replacing a movement is less costly than a overhaul. The RWS Kieninger Clock Movement last 25 years before needing an over haul, but since its still being made at a fair price it is so much better just to replace.
