Timing a balance clock movement
Balance Clock Movement Timing is done fairly easy. There are three types clock balance movement styles used after 1950. This section is for those balance units that do not have a platform escapement. The platform escapement can be read about in another section. These notes are only for the larger balance wheel in the top center of the clock movement. This was used by Urgos 6/ series and many of the Hermle clock movements. Such as 340-020 and 350-020. Out of these you have two styles, the old style and then the new style. The old style was used all through the 70's and 80's and 90's. Around this time that they switched to the new style on the Hermle units and by this time the Urgos units were out of production.
The old style
The old style is one with a round spring that goes up and down (Vertical). It goes in a circle around the center arbor of the balance wheel. In this style there is a slide arm with a tiny weight on the balance wheel itself. There is a + and - on the wheel. To speed up time go towards the plus sign. However this style is not always easy to regulate and can be very hard to get it perfect. The factory has special devices to make it perfect. However it’s not that easy on the customer end with this style balance. For this reason it has been improved upon during future manufacturing.
If you have the old style balance then your clock movement has some age to it. If this is the situation you may want to replace the unit anyway. We have the movement brand new with the new style balance for less than the cost of a cleaning. Your clock movement has lasted you 25 years or more. In theory the new unit should last more than this with the improved aspects.
The new style
The units offered on this page all have the new and improved balance assemblies. Despite the change on the balance, these units are a direct fit and will install in the clock case the exact same way as the old unit. If the numbers match from the old unit to the numbers offered on this page, than the movement will be the exact same. It will be the same as it is now but brand new and with the improved balance.
The improved upon balance units have a different kind of hairspring (Horizontal). It will also have a screw to regulate it rather than a slider arm. The regulator screw is on the back of the movement near the balance. There is a + and - sign next to it meaning fast or slow. If the clock needs to be faster to keep time then the screw would be turned to the plus and opposite for slowing time.
Hermle clock 341 - 340 movement
Hermle clock 341 - 340 movement is such a popular little movement, so many sold, and for good reasons. It is compact and versatile, hard working and cost efficient. The movement will work 20 or 30 years night and day without much complaint.
Can fit into tight places, it can come in either a pendulum version or a balance wheel instead. The advantage of a balance wheel is there is no pendulum to put in beat, you can move it without readjusting the beat. Also with a balance wheel you never have to care if its level or not. The pendulum unit advantage is that louder tick tock sound. If the pendulum is visible through the glass it is a nice hypnotic thing to look at and listen to.
A size 8 key winds up both the 340 and 341 clock movements, a single wind lasts 8 days. Ready for installation, the 340 and 341 Hermle clock movement series comes oiled and ready to go. Sold as the movement itself with its hand nut and hammers. If a pendulum unit, it will come with its suspension spring and leader. Already oiled Hermle 340 - 341 clock movement comes ready for installation.
Westminster progressively playing each quarter hour, and the full song on the top of the hour. This is followed by the striking out of whatever the hour is. The hammer location on these units are on the bottom, with 5 hammer heads that strike chime rods. This aspect does not vary on these units, they are all consistent with the 5 hammer below attribute on all 340 and 341 movements.
- A fraction of the price of an overhaul
- Should last 25-30 years, an overhaul would not
- Instructions and expert support
- Hermle Clock Movement of Germany
About Hermle Clock Movements
Hermle clock movements are among the finest movements made in the modern times. The German made Hermle units typically work night and day for 30 years without much complaint. To go and get it overhauled like you normally would with any clock after a long time, it is found that is cost is high. This is for good reason as it can be a large task to restore it. But as you see, since its a modern day unit (Post War German) it can be available new for a very good price. So what happens is you get a new movement instead of a fixed up old one, you get it in 3 days instead of 6 months. You will save hundreds of dollars doing it also.
All the Hermle clock movements clockworks.com offers is the best grade. In other words there are a couple styles some units have that are not as good as others. There are various movements that have more than one grade. Some units can have plastic for the hour hand tube and the next wheel down, instead the better brass. Meanwhile the number is the same for both grades. In other words there is the economy grade and there is the full grade, on some movement series. Please know that clockworks.com will only ship the best grade Hermle clock movement available, every time.
What you will receive
Each one of the these fine Hermle clock movements come already oiled, will come with the hand nut also. If it is a pendulum style clock, it will come with the suspension spring and the pendulum hanger (leader). If its a weight driven clock, it will come with new chains or cables and with pulleys. So this will be the movement with its hammer assemble on. This is the complete movement that comes out after you get in your hands and walk away from the clock with it. No weights, pendulum, chime block, hands, dial all this you have already usually.
When you place your online order you will get a receipt emailed to you providing you put in the correct email address. If you do not get a receipt, please check your spam folder for the receipt from us. On the receipt is the link to click for the instructions for your product. The Hermle clock movement ships from Huntington, MA 01050 USA and sometimes from other locations also. The movements go out the next business day unless there is something we have to do to it such as a regear. The Hermle Clock Movements ship out UPS or sometimes FedEx. Never USPS unless there is a special request or you are an international customer.
Hermle Clock Movement Identification
Identification of a Hermle clock movement is by locating the numbers on the back plate of the movement itself. It will not be in the manual that came with the clock or on the wood case. On the back plate of the clock movement there are numbers such as 451-050 94 cm. These numbers indicate everything there is to know about that particular mechanical clock movement.
Identification is the first step
In order to purchase a new movement, the old number has to match up with the new one. The new movement will be exactly the same. It is not a knock off. All of the existing clock components will fit the new movement. Proper identification is important when troubleshooting, ordering parts, or discussing compatible components. Thus, when contacting us it is imperative to correctly reference the number on the backplate of the movement.
A new Hermle clock movement is best
As discussed in several sections, a new movement is always best. A new unit is a fraction of the price of an overhaul. The clock will be up and running much faster than waiting months for an overhaul to be completed. The movement will last another 30 years. This is not possible with a restored unit.
Mechanical Clock Movement Wear
Mechanical clock movement wear after years go by because the oil turns solid. With age, the mechanical clock movement's oil solidifies and becomes black and sticky. By the time 20 or 30 years go by, the oil has solidified and is creating wear on the movements brass plates.
What wear and where
If you look at your old clock movement, you will see holes in the brass plates where there are small pivot arbors sticking into these holes. These pivots are what the gears of the clock ride upon and as the pivots spin in the solidified oil, this makes the holes oblong instead of round. With the pivot holes oblong, the holes are pinching the pivots and creating resistance in the gear train. With the solidified oil and the pinched pivots, the clock will eventually stop working or chiming.
Invisible clock movement wear
This wear takes place in the holes that are in the brass plates and is hard to identify sometimes. These holes in the brass plates become oblong instead of round and this pinches the pivot arbor going into it. Between this, and the solid oil, the clock ceases to function. To have this repaired is an expensive and long process. To have a mechanical movement serviced can cost two times as much or even three times the amount of the new one.
New Clock Movement Benefits
Getting the movement worked on
Clocks need to be oiled after 10 years or so. Then, after 20 or 30 years, a full break down of the movement is necessary. This is all well and good and can be done with the old movement. The movement will run for another 5 or 15 years with no issues but then it will be time to do it again.
Every time the movement is worked on and re-bushed, it will last less and less time before it needs attention again. The repair process is expensive because it takes time to separate the plates, remove all the gears, do the necessary work, and then put them all back together again. This process may need to be redone if not perfect the first time. The turn around time to complete an overhaul could be anywhere from 1 to 3 months, and in some extreme cases, a year. It is a slow moving venture that costs twice as much as a new movement would. If a new movement is not available, then this is the best, and only, way to handle a clock repair.
Replacing with a new clock movement
If the movement is still in production, it is far better to just get the new one. Mass production makes the movement so affordable it will cost a fraction of the price of the repair work. The movement will be the same one but brand new and ready to run 30 years without much complaint. There is absolutely no way to repair an old movement so that it is better than new. Even the best clockmaker using the best equipment cannot make the movement better than a new one.
A new one is a factory fresh restart. The clock will be like it was originally when it was purchased from the store. The new movement will be made by the same people, with the same machines, and the movement is the same. It is not a close replica or made somewhere else besides Germany. It is the same movement. Not a knock off or replica. So wouldn't it make sense to get the new one instead of chasing the old? The choice is clear and obvious. The new movement will cost a fraction of the price and the clock is up and running in no time.
Movements to consider getting repaired instead
If a unit is no longer in production and not available new, then a repair is most likely your only option. However we will try to convert it to a new unit that is close and easy to adapt. If it is not an easy one to adapt, or would take too much case work, then the best solution is to get it worked on.
Another movement to consider getting overhauled instead of replaced is the tubular bell, which is a high end movement. The price of a tubular bell unit makes an overhaul more attractive. This is because of the high price on the new ones which is currently around $1600. Usually the price is less for the new unit but instead these units are more costly than the overhaul by clockworks.com anyway. We can charge only $900 for the complete overhaul on these units. Ultimately the choice is yours. There is a good argument in both directions that makes sense on these expensive units.
Clockworks.com = The best repair service
We would love to do the overhaul here at clockworks.com and we do the best job. There are two ways to fix clocks; the easy way and the hard way. We only do it the hard way with no short cuts. It is even more important for us to do your repair than another company because we do not go to your house. There is no one being intrusive in your home and possibly damaging your clock case.
The movement itself is the only item that gets sent to us. No components need to be sent since we have everything else here such as weights, dials and pendulums. It is a great advantage to have clockworks.com work on your movement for this fact alone. A clock supply depot such as us does not need to wait for parts. We possess everything we could possibly need to complete a thorough, professional clock repair right here.
The new movement
New clock movement benefits usually do indeed outweigh the repair option. The movement will already come lubricated with clock oil so there is no need to oil it. The clock comes with cables and pulleys, or chains, the leader, and suspension spring. This is everything that comes out when you remove the two screws that are under the movement, besides the dial and weights.
Once you get the hands and the clock dial out of the way (instructions included) it's only a matter of removing the two screws from underneath. The new movement can be swapped out by an experienced person in 10 or 15 minutes. An inexperienced person will take longer, but the point is that it isn't hard to do. There are some instances where a clock case was made in an annoying way that makes it more difficult, but for mass produced clocks this is not the situation. This more related to a few individual clockmakers who may have designed the case to make it more tricky to get the movement in or out.
A new clock movement is typically less than half the cost of an overhaul. It will also be on its way to the customer instantly instead of months later. A new clock movement will last the longest of any other choice.
Hermle Clock Movement Aliases
Hermle produced clock movements and used aliases for names in a way. The movement could be stamped many names but really it will be made by Hermle. Some companies bought so many they were able to get there name on the movement instead of Hermle. The following is only a partial list of names that could be on the clock movement.
The best disguised Aliases
Seth Thomas also Mason and Sullivan had not only there name, also there own internal numbering system. This was stamped on the movement, instead of the Hermle number. Since it is not a Hermle number, the number would need to be converted to what the real number is . This is done with the Mason and Sullivan chart, or the Seth Thomas conversion Chart. However the Seth Thomas chart is not very accurate, please see instructions on that page.
Best to replace the movement
It is best to replace the clock movement if either of these names are on the movement automatically. You do not have to think and decide if repair is better, the answer is a simple no. These companies went out of business long ago and the unit is over its lifetime. The lifetime is 25 - 30 years before it needs an overhaul or replacement. Both ST and Mason Sullivan on the movement would indicate the clock is about 40 years old.
The other Hermle Clock Movement Aliases are easy
Hermle Clock Movement Aliases on other clocks used only their name, and not there own internal numbering system on the Hermle movements. So basically if the clock is of post war German origin you can just look at the number and forget the name. The numbers will indicate what movement it is. If it is a Hermle movement its 3 or 4 digits followed by a hyphen, and then 3 more digits. Like this 1161-853 or 340-020 or 351-060. If the numbers look like this it is made by Hermle.
Other Names Used
- S. Larose
- Mason & Sullivan
- Tally Industries
- Seth Thomas
- Howard Miller
Hermle Number Examples
Below are some typical examples of the Hermle clock movement numbering system. If your clock numbers are similar to this, its made by Hermle.
- 451-050 94cm
- 451-030 66cm
- 341-020 45cm
- 1151-050 114cm
- 451-053 94cm
- 1161-853 114cm
- 141-070 45cm
- 351-050 55cm
- 1161-850 94cm
- 241-070 94cm
340 - 341 Hermle Clock Movement
The numbers on the back plate of the 340 - 341 Hermle Clock Movement is everything one needs to get a replacement. If the numbers match then the movement will match.
If the clock is a pendulum unit, be sure to select the proper CM length that matches the old unit. For example it may say 341-020 45cm on the Hermle Clock Movement. If your clock movement has an A at the end such as 341-020A, just ignore the A.
- Pendulum Unit
- Two Hand shaft lengths
- Plate size 100 x 100mm
- Spring Driven
- Factory Oiled
- Next Day Shipping
- A fraction of the price of an overhaul
- Should last 25-30 years, an overhaul would not
- Instructions and expert support
- 340 - 341 Hermle Clock Movement

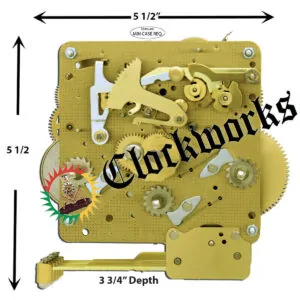

341-020 Hermle Clock Movement
The Hermle 341-020 is a Westminster Chime unit with five chime hammers below. This high quality German movement comes pre oiled and includes its leader, suspension spring and hand nut.
Ordering a Hermle Clock Movement
The movement numbers off of the Hermle clock movement are needed when ordering. The numbers are matched up and it will be the exact same movement as the old one. Replacing the movement is a fraction of the price of a repair, and the clock will be up and working the fastest way.
Clock movement removal and installation
Removing and the installing the clock movement only requires the most basic tools. If you can change the spark plug on your lawn mower this will be a breeze. All the Hermle clock movements are in stock and can ship immediately. We are full time clock makers and retailers both, so if you need any assistance please ask. This goes for the installation or ordering a Hermle clock movement, if you need help please let us know.
Matching the CM when ordering
This note is only if your ordering a movement that has a pendulum. You will need to match up your CM length from the back plate of your old unit to the new one. The options indicated all that is available by stock. If there is a CM number you need but is not listed we can still create it most likely by changing some gears. If this is the situation please just give us a call 800 381 7458. There is an extra fee for the regearing of the movement. Usually this fee is $30 to $40 additional.
Replacing a movement is less costly than a overhaul. These movements last 25 years before needing an over haul, but since its still being made at a fair price it is so much better just to replace. The clock will be problem free right away instead of months, last longer than a overhaul and comes oiled.
Hermle Clock Movement Directory Explanation
Hermle Clock Movement Directory is to get to the correct page that contains your clock movement. The Hermle mechanical movements have numbers on the back plate starting with the below few numbers, and then followed by a - dash and then some more numbers. Examples = 340-020 131-070 1161-853 351-020 and similar. So if your clock says something like 1161-053 you would drop the second half and click the 1161 button below. This will bring you to the page where 1161-053 and the rest of the 1161 series resides.
Hermle Clock Movement Directory, Number starts with.....
If Not Listed
If your Hermle movement is not found on these pages we may still have it as a conversion or we maybe able to create it out of what exists. Please email your movement number or a picture of the back plate to [email protected] If your movement numbers do not look like the Hermle movement numbers as described it maybe made by someone else. The mechanical movement identification page will assist you with determining who made the clock. This is for post WW2 modern mechanical clock movements made in Germany only however.
