451-050 and other 451 Hermle Clock Movement's are described in this tab system
Hermle 451 clock movement
Being one of the most produced movement in the clock world, the Clock movement 451 Series is very popular. The 451-050 and the 451-053 are only rivaled by the 340-020 mantle unit for quantity produced. A Hermle 451 Series clock movement will work for 25 - 30 years night and day with out much complaint.
The movement
A grandmother sized clock case would except the Hermle 451 Series clock movement perfectly usually. This clock movement has square outer movement plates that are 120 x 120mm. A chain driven, three weight, Westminster chime clock movement, that fits into tight places.
Pendulum, chimeblock, dail or weights sold separately. Hand nut, chains, suspension spring and leader come with the new Hermle 451 Series clock movement. Chains, leader and suspension spring included. It is basically everything that comes out with the two screws underneath removed. With so many sold, the part and component availability is high for the 451 clock movement, this cannot be said about many other clocks.
The support
You would think if a family has been doing something for 100 years they would know what their doing. Well, your right! So if any questions about the product at any point in time, even 10 - 15 years later, ask. We can assist long after the factory warranty of 3 years. Instructions on removal of the old and the install of the new Hermle 451 Series clock movement, with support if needed.
- A fraction of the price of an overhaul
- Should last 25-30 years, an overhaul would not
- Instructions and expert support
- Hermle Clock Movement of Germany


About Hermle Clock Movements
Hermle clock movements are among the finest movements made in the modern times. The German made Hermle units typically work night and day for 30 years without much complaint.
To go and get it restored like normally would with any clock after a long time, it is found that is cost is high. This is for good reason as it can be a large task to restore it.
But as seen, since its a modern day unit (Post War German) it can be available new for a very good price.
Get a new movement instead of a fixed up old one, get it in 3 days instead of 6 months. Save hundreds of dollars doing it also.

Movement grades
All the Hermle clock movements Clockworks offers is the best grade. In other words there are a couple styles some units have that are not as good as others. There are various movements that have more than one grade.
Some units can have plastic for the hour hand tube and the next wheel down, instead the better brass. Meanwhile the number is the same for both grades. In other words there is the economy grade and there is the full grade, on some movement series.
Please know that Clockworks will only ship the best grade Hermle clock movements available, every time.

What will be received
Each one of the these fine Hermle clock movements come already oiled, will come with the hand nut also.
If it is a pendulum style clock, it will come with the suspension spring and the pendulum hanger (leader).
If its a weight driven clock, it will come with new chains or cables and with pulleys.
So this will be the movement with its hammer assemble on.
This is the complete movement that comes out of the clock. No weights, pendulum, chime block, hands, dial all this is already present usually.
Upon ordering Hermle Clock Movements
When placing an online order a receipt will be emailed provided the correct email address is entered. If no receipt, please check the spam folder for the receipt from us.
On the receipt is the link to click for the instructions for the product. The Hermle clock movements ships from Huntington, MA 01050 USA and sometimes from other locations also. The movements go out the next business day unless there is something we have to do to it such as a regear.
The Hermle clock movement ships out UPS or sometimes FedEx. Movements rarely ship via USPS unless there is a special request or an international customer.
Hermle Clock Movement Identification
Most important is the identification of the Hermle clock movement and it requires locating the numbers on the back plate of the movement itself.
This can be done by removing access panels, sticking a phone inside and taking a picture, or even a mirror. Use any possible means to get the number of the Hermle clock movement. This information is not in the manual that came with the clock or on the wood case.
On the back plate of the Hermle clock movement there are numbers such as 451-050 94 cm. These numbers indicate everything there is to know about that particular mechanical Hermle clock movement.
Identification is the first step
In order to purchase a new Hermle clock movement, the old number has to match up with the new one. In short, the new movement will be exactly the same.
It is not a knock off. Generally speaking, all of the existing clock components will fit the new movement. Proper identification of the Hermle clock movement is important when troubleshooting, ordering parts, or discussing compatible components.
Thus, when contacting us it is imperative to correctly reference the number on the backplate of the movement. If there is any confusion, send us a picture of the back plate, as close and as clear as possible, and we can help identify which Hermle clock movement is needed.
A new Hermle clock movement is best
To clarify, as previously discussed in several sections, a new Hermle clock movement is always best. A new unit is a fraction of the price of an overhaul.
The clock will be up and running much faster than waiting months for an overhaul to be completed. The new Hermle clock movement will last another 30 years. This is not possible with a restored unit.




Mechanical Clock Movement Wear
Mechanical clock movement wears out after years go by because the oil turns solid. With age, the mechanical clock movement's oil solidifies and becomes black and sticky.
By the time 20 or 30 years go by, the oil has solidified and is creating wear on the brass plates of the movement. So, when this happens, the clock movement will not run correctly.
This is when the movement will need a cleaning at least, or be replaced. Of course, a brand new movement is always the best option.
What wear and where
Look at the old clock movement, and see holes in the brass plates where there are small pivot arbors sticking into these holes. These pivots are what the gears of the clock ride upon and as the pivots spin in the solidified oil, this makes the holes oblong instead of round.
With the pivot holes oblong, the holes are pinching the pivots and creating resistance in the gear train. With the solidified oil and the pinched pivots, the clock will eventually stop working or chiming.
Invisible clock movement wear
This wear takes place in the holes that are in the brass plates and is hard to identify sometimes. These holes in the brass plates become oblong instead of round and this pinches the pivot arbor going into it. Between this, and the solid oil, the clock ceases to function.
To have this repaired is an expensive and long process. To have a mechanical movement serviced can cost two times as much or even three times the amount of the new one.
However, once the movement starts having problems due to the oblong pivot holes, something will need to be done. The clock will never stay running otherwise.
New Clock Movement Benefits
New clock movement benefits far outweigh the benefits of a restoration. This section will explain why that is and what the best course of action is to get your clock working.
Servicing the movement
Clocks need to have fresh oil after 10 years or so. Then, after 20 or 30 years, a full break down of the movement is necessary. This is all well and good and can be done with the old movement.
The movement will run for another 5 or 15 years with no issues but then it will be time to do it again. So obviously this is a new clock movement benefit.
Every time the movement needs to have work done on it or needs bushings, it will last less and less time before it needs attention again. So another new clock movement benefit is that this would not happen.
The repair process is expensive because it takes time to separate the plates, remove all the gears, do the necessary work, and then put them all back together again.
This process may need to be redone if not perfect the first time. The turn around time to complete an overhaul on a clock movement could be anywhere from 1 to 3 months, and in some extreme cases, a year.
It is a slow moving venture that costs twice as much as a new movement would. If a new clock movement is not available, then this is the best, and only, way to handle a clock repair.
Replacing with a new clock movement
If the clock movement is still in production, it is far better to just get the new clock movement. Mass production makes the movement so affordable it will cost a fraction of the price of the repair work.
The new clock movement will be the same one but brand new and ready to run 30 years without much complaint. There is absolutely no way to repair an old clock movement so that it is better than new.
Even the best clockmaker using the best equipment cannot make the clock movement better than a new one.
A new clock movement is a factory fresh restart. The clock will be like it was originally when you first made the purchase from the store. The new clock movement will be made by the same people, with the same machines, and the clock movement is the same.
It is not a close replica or made somewhere else besides Germany. It is the same movement. Not a knock off or replica. So wouldn't it make sense to get the new clock movement instead of chasing the old?
The choice is clear and obvious. The new movement will cost a fraction of the price and the clock is up and running in no time.
Movements That Would Need a Repair or an Overhaul
If a new clock movement is not possible, then a repair is most likely the only option. However we will try to convert it to a new clock movement that is close and easy to adapt.
If it is not an easy one to adapt, or would take too much case work, then the best solution is to have us work on it. Another clock movement to consider having restored instead of replacing it is the tubular bell, which is a high end movement.
The price of a tubular bell new clock movement makes an overhaul more attractive. This is due to the high price on the new clock movements which is over $1600.
Usually the price is less for the new unit but instead these new clock movements are more costly than the overhaul by Clockworks anyway.
We can charge a much lower amount for the complete overhaul on these units. Ultimately the choice is yours. There is a good argument in both directions that makes sense on these expensive new clock movements.
Clockworks = The best repair service
We would love to do the clock movement overhaul here at Clockworks and we do the best job. There are two ways to fix clocks; the easy way and the hard way. We only repair clock movements the hard way with no short cuts.
Even with new clock movements, we inspect them and make sure all is well before shipping them out. It is even more important for us to do your repair than another company because we do not go to your house. There is no one being intrusive in your home and possibly damaging your clock case.
The clock movement itself is the only item that gets sent to us. No components need to be sent since we have everything else here such as weights, dials and pendulums. It is a great advantage to have Clockworks work on your clock movement for this fact alone.
A clock supply depot such as us does not need to wait for parts. We possess everything we could possibly need to complete a thorough, professional clock repair right here. If a new clock movement is not possible, then this repair is your best and only option.
The new movement
New clock movement benefits usually do indeed outweigh the repair option. The movement will already have lubrication with clock oil so there is no need to oil it.
The new clock movement comes with cables and pulleys, or chains, the leader, and suspension spring.
This is everything that comes out when you remove the two screws that are under the clock movement, besides the dial and weights.
Once you get the hands and the clock dial out of the way (instructions are sent via email) it's only a matter of removing the two screws from underneath.
The new clock movement can then be put in by someone with experience in 10 or 15 minutes. A person with no experience will take longer, but the point is that it isn't hard to do. This is definitely a new clock movement benefit.
There are some instances where a clock case was made in an annoying way that makes it more difficult, but for clock movements that were in a mass production this is not the situation. This relates more to a few individual clockmakers who's design of the case makes it more tricky to get the new clock movement in or out.
Summary of New Clock Movement Benefits
A new clock movement is typically less than half the cost of an overhaul.
It will also be on its way to the customer instantly instead of months later. A new clock movement will last the longest of any other choice.
Hermle Clock Movement Aliases
Hermle produces clock movements but the use of aliases is quite prevalent. The movement could have a stamp with any name but really it will be made by Hermle.
Some companies bought so many movements that they were able to get their name on the movement instead of Hermle. The following is only a partial list of names that could be on the clock movement.
The best Aliases in Disguise
Seth Thomas and Mason and Sullivan had not only their name, but also their own internal numbering system.
Their stamp and number was on the movement instead of the Hermle number. Since it is not a Hermle number, the number would need to have a conversion to the real number. Correspondingly, this is done with the Mason and Sullivan chart, or the Seth Thomas conversion Chart.
However the Seth Thomas chart is not very accurate, please see instructions on that page.
Best to replace the movement
It is best to replace the clock movement if either of these names are on the movement automatically. Of course, do not have to think and decide if a repair is better, the answer is a simple no. These companies went out of business a long ago and the life of the unit is over.
Ordinarily, the lifetime is 25 - 30 years before it needs an overhaul or replacement. In fact, if ST or Mason Sullivan is on the movement that would indicate the clock is about 40 years old or more.
The other Hermle Clock Movement Aliases are easy
All in all, Hermle Clock Movement Aliases on other clocks use only their name, and not their own internal numbering system on the Hermle movements. So basically if the clock is of post war German origin just look at the number and forget the name.
Additionally, the numbers will indicate what movement it is. If it is a Hermle movement there are 3 or 4 digits then a hyphen, and then 3 more digits. For example, 1161-853 or 340-020 or 351-060. If the numbers look like this it is made by Hermle.
Other Names Used
- Hamilton
- S. Larose
- Mason & Sullivan
- Welby
- Pearl
- Tally Industries
- Bulova
- Seth Thomas
- Howard Miller
- Sligh
Hermle Number Examples
Below are some typical examples of the Hermle clock movement numbering system. If the clock numbers are similar to this, it is made by Hermle.
- 451-050 94cm
- 340-020
- 140-070
- 451-030 66cm
- 341-020 45cm
- 1151-050 114cm
- 451-053 94cm
- 1161-853 114cm
- 141-070 45cm
- 351-050 55cm
- 1161-850 94cm
- 241-070 94cm
Hermle Clock Movement Directory Explanation
Above all, a Hermle Clock Movement Directory is to get to the correct page that contains the clock movement. This is an important first step when ordering a new clock movement.
Thus, Hermle mechanical movements have numbers on the back plate starting with the below few numbers.
Then a dash (-) follows and then some more numbers. For example: 340-020 131-070 1161-853 351-020 and so forth.
So, if the clock says something like 1161-053 drop the second half and click the 1161 button below. Then this will go to the page where the 1161-053 is as well as the rest of the 1161 series.

Hermle Clock Movement Directory, Number starts with.....
130+131+132 | 140+141 | 241 |
261 | 340+341 | 350+351 |
451 | 461+471 | 1050+1051 |
1151 | 1161 | 1171 |



If Not Listed
If the Hermle clock movement is not found on these pages we may still have it as a conversion or we may be able to create it out of what exists. However, we need to know the movement number.
So please email the movement number. Of course a picture of the back plate is also helpful. Moreover, if the movement numbers do not look like the Hermle movement numbers it may be made by someone else.
Additionally, the mechanical movement identification page will assist with determining who made the clock. In any event, this is for post WW2 modern mechanical clock movements made in Germany only.
451 Hermle Clock Movement
The numbers on the back plate of the 451 Hermle Clock Movement is everything one needs to get a replacement. If the numbers match then the movement matches.
If the clock is a pendulum unit, be sure to select the proper CM length that matches the old unit.
- A fraction of the price of an overhaul
- Should last 25-30 years, an overhaul would not
- Instructions and expert support
- Hermle Clock Movement of Germany
451-050 Hermle Clock Movement
The Hermle clock movement 451-050 is a Westminster Chime unit with 8 hammers on the back. This high quality German movement comes oiled and includes its leader, suspension spring and hand nut.

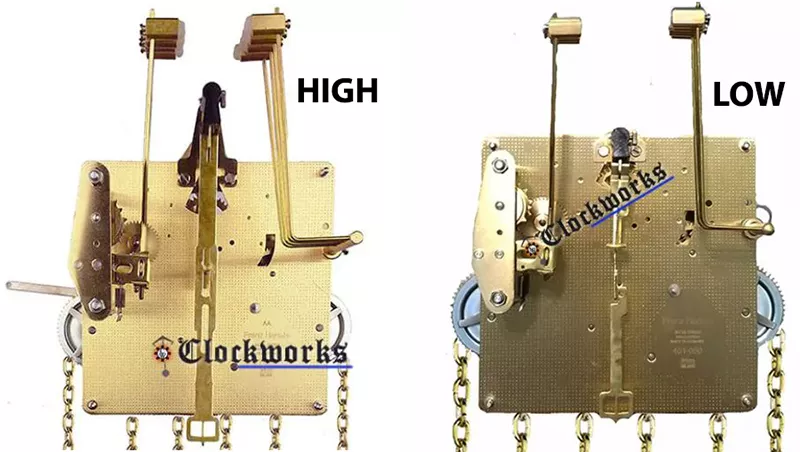

High Bridge or Low Bridge
The 451 and 1151 series clock movements can come in either High Bridge or Low Bridge. The difference between the two is in the height of the post above the movement. The suspension post is the part that sticks out of the back of the clock movement, that the entire pendulum assembly hangs off of. The suspension spring slides into this suspension post, and the leader then hangs off of it. This suspension post on the H series is up in the air by an A frame bracket. The A frame bracket raises the suspension post by around 1 1/4" above the top plate of the movement. Alternatively the low bridge models were not indicated by LB, rather omitted from the number sequence. These have the suspension post more even with the top of the movement, sticking above it by around 1/8 of an inch only.
451 Conversion from low to high
These are interchangeable but the timing will be off if going from low bridge to high bridge, and would require a overall pendulum length about 1 1/4 inches less. This is done by cutting the pendulum shorter or getting a shorter leader, either way. The best thing to do if replacing a movement is to get the same one, whether it be the high bridge or low bridge for a direct fit.

Ordering a Hermle Clock Movement
To order a Hermle clock movement we need the numbers off of the back plate of the movement itself. Match the numbers up so the new movement will be exactly the same as the old one.
Replacing the movement is a fraction of the price of a repair. It is also the fastest way to get the clock up and running again.

Clock movement removal and installation
Removing and installing the clock movement requires the most basic tools. All of the Hermle clock movements are in stock and ship immediately. We are full time clock makers and retailers.
This means we can help from start to finish. If needing assistance in picking out the correct Hermle clock movement, installation or troubleshooting, we can help. Please do not hesitate to ask.

Matching the CM when ordering a Hermle Clock Movement
This note only applies if the current Hermle clock movement has a pendulum. Please match up the CM length from the back plate of the old unit to the new one.
The options in the drop down menu ultimately indicate stock items that are available. However, if there is a CM number that is needed and is not listed, we can usually create it by changing some gears. If this is the situation please give us a call.
There is an extra fee for regearing the movement. Usually this is an additional fee of $100.

Conclusion
Replacing a clock movement is less costly than an overhaul. The movement will last another 25 years before needing any work. Since it is still in production, and offered at a very reasonable price, it makes sense to replace the movement. The clock will be problem free right away, instead of months.
Plus it will inevitably last longer than an even the best overhaul. There is no way to restore better than a brand new movement. So please make the wise decision of replacing whenever possible.
Hermle Clock Movement Directory Explanation
Above all, a Hermle Clock Movement Directory is to get to the correct page that contains the clock movement. This is an important first step when ordering a new clock movement.
Thus, Hermle mechanical movements have numbers on the back plate starting with the below few numbers.
Then a dash (-) follows and then some more numbers. For example: 340-020 131-070 1161-853 351-020 and so forth.
So, if the clock says something like 1161-053 drop the second half and click the 1161 button below. Then this will go to the page where the 1161-053 is as well as the rest of the 1161 series.

Hermle Clock Movement Directory, Number starts with.....
130+131+132 | 140+141 | 241 |
261 | 340+341 | 350+351 |
451 | 461+471 | 1050+1051 |
1151 | 1161 | 1171 |



If Not Listed
If the Hermle clock movement is not found on these pages we may still have it as a conversion or we may be able to create it out of what exists. However, we need to know the movement number.
So please email the movement number. Of course a picture of the back plate is also helpful. Moreover, if the movement numbers do not look like the Hermle movement numbers it may be made by someone else.
Additionally, the mechanical movement identification page will assist with determining who made the clock. In any event, this is for post WW2 modern mechanical clock movements made in Germany only.
I have a new Hermle 451-050 works, installed it and everything is great except when the first hammer on the quarter strike looking from back to front is dead. A thud is all you get. The rod is ok as it resonates well when tapped. You can pull the hammer back and let it fall and all you get is a thud. Help as the sound is ver annoying.
See this article on how to adjust the hammers so they sound good when they hit
https://www.clockworks.com/posts/clock-chime-hammer-positioning
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
Performed all items suggested with no improvement in sound, still get a dead sound. I was not able to adjust the dead hammer to stay 1/8 “ off the rod. It stays on the rod. Could this be a spring issue?
Yes sounds like a spring issue or something going on with the roll pin interaction.
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
I have a quartz grandfather clock with a 94cm pendulum, the inner case depth is 5 3/4 inches, and I’d like to replace the cheap battery powered parts with a real movement, one of which supports a spinning moon dial. Could this possibly be fitted inside, and if not, what could be used?
Can you email pics of this one and ask this same question, clockworks@clockworks.com
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
Good morning, I purchased a 451-050 94 cm high bridge movement on order number 325490. This is to replace a Mason & Sullivan 451-050H movement, What I have found is that the new movement is different in that the pendulum leader hangs about 1 3/8″ from the rear plate of the movement. The old Mason & Sullivan pendulum leader hangs about 7/8″ from the rear plate. The problem with the new movement is that the pendulum leader hangs between the chime rods, which does not give the pendulum any room to swing. Am I missing something?
Thank you.
This rare issue is addressed at this link
https://www.clockworks.com/posts/451-1151-high-bridge-suspension-post-length-issue
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
I would like to replace a Mason & Sullivan 451-050H 94 cm, Westminster Chime, chain driven. Is
451-050 Hermle Clock Movement the correct replacement?
Yes it most certainly is
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
Hello, I have grandmother clock which l have owned for 40yrs, it has not worked for about 7yrs it has a 451-050 movement l want to replace this myself/ can you help by telling me how to get the hands off. Regards Bert.
The first step is to order the clock movement, because upon ordering it you will get a receipt. On the receipt there will be a link with pictures on the removal and installation of the clock movement.
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
Good morning, I have a Hermle movement 451-050 with 75cm pendulum length. I need several parts chime rod assembly, weights chime lever extension and pendulum leader. I believe the weights i need are strike train 4.7 lbs. time train 4.7 and chime train 6.6 lbs. I also need clock hands I will get back to on the face style.
Thank you,
Danny
Weights are fine for that.
Chime rods for this are at this link
https://www.clockworks.com/product/grandfather-clock-chime-block-back-strike-with-hardware
Serpentine hands
https://www.clockworks.com/product/serpentine-hands-for-german-mechanical-clocks
This is the old style leader for that
https://www.clockworks.com/product/hermle-clock-pendulum-leader-4-3-8-long
This is the new style leader
https://www.clockworks.com/product/hermle-clock-pendulum-leader-5-1-2-inch
Suspension spring is A3 if the bob is 6 1/2 inches or wider
https://www.clockworks.com/product/clock-pendulum-suspension-springs-assortment
Suspension spring A2 if the bob is less than 6 1/2 wide
https://www.clockworks.com/product/clock-pendulum-suspension-springs-assortment
Top hook for the wood stick pendulum if you need it, it is the 3/4 inch wide one
https://www.clockworks.com/product/hermle-clock-movement-top-hook
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
Good afternoon, My father gave me the grandmother clock that he built from a picture in a magazine back in late 1990’s. The has a Hermle 451-050H 94cm/66 movement. Made in USA. The clock stopped chiming about 3 to 5 years ago. The chime silence arm is in the down position and I tried the procedure with moving all of the hammers at one time. When I removed the clock movement and looked at the front of the movement the snail gear moves but the arm that is supposed to ride on it does not automatically drop or reset when the snail gear returns to the 1 o’clock position. Will this cause the clock not to chime? Is it costly to fix?
Please run it without the hands and the clock dial for testing the chime. It will narrow things down. Next, put the minute hand on just slightly to turn it to the next chime, and the next, let it strike out the hours fully. If it chimed and striked ok, your all set, put the dial and hands back on. What happened is the rack fell behind the snail (the hour hand tube) and brought it forward some. It brought the hour hand forward to the point that when the minute hand is installed it squashed the hour hand upon tightening the minute hand nut. With the strike squashed between the front plate and the snail, all sorts of weird issues occur. If this was a fail and the clock did not chime through this, continue with the below check points.
Be sure the clock’s silent lever is in the down position. This lever is at 3oclock on the movement. This is chime ON.
The chain cant be rubbing anything in its path like the seat board. Should be ratchet wheel straight to the weight, not rubbing anything.
Is the hammers hitting anything in its path when they move? If the hammers are rubbing the back of the clock case, or if there hitting or rubbing against each other, the clock will hang up and not chime
The heaviest weight on your right as you face the clock? The chime weight is the heaviest weight out of the three and goes in this position.
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
James I tried everything that you recommended. If I reset the snail and rack the rack always ends up behind the snail and the rack does not make contact with the snail. The clock will chime for the first two hours and then I need to rest the rack and snail. I ordered a new movement. Once the new movement comes in I’ll dissect the old one. The old movement was oiled excessively. So I think that the oil is screwing with the clock’s function
How to know clock hand size will fit new movement shaft or do you sell hands to fit a low bridge 451-050 85cm movement. I will measure shaft length before ordering. Thanks for your time.
HI
Hands for a german mechanical clock
https://www.clockworks.com/?post_type=products&s=german+hands
The hands are measured by the time track diameter (just outside the numerals like outside of the 9 to outside of the 6), the minute hand length will be about half this diameter. Comes also with the shorter hour hand included in the set.
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
My movement I purchased from you last year is having issues, it refuses to chime on the hour and on the quarter hour, the movement has never been overwound, If i move the chime/no chime lever it will chime about 2 times then stop. I have asked for assistance once before and was not satisfied with the response, I figured I would make another attempt
1. Be sure the clock is wound up. You can wind this one ALL the way up. It cannot be overwound.
2. If there is a lever on your right as you face the front of the clock movement, this lever needs to be in the down position. Up is off, down is on.
3. The clock may not chime 3/4’s of the hour, as it maybe looking for the top of the hour. When it does chime the top of the hour, then you can take off the hands where ever they are pointing to, and put them back on the clock at that hour it chimed out.
4. If the clock still does not chime, try pulling back all the hammers at once with your hand and let go. This will be to release the roll pin. Try it again.
5 If the clock still will not chime, the lever in the front of the movement maybe stuck in UP from shipping. Either lift the movement up and shake it up and down to get it to drop, or just look at it and make sure the levers on the front are loose and down. Particularly the one on the top right as you look at the front of the movement.
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
Hi, I have an Emperor Clock Co. Model 100M (early 1970s vintage) that needs a new movement. The movement doesn’t have a name on the back, but does have the following numbers: 382964, and 77 6 76. It appears as though a Hermle 451-050 will work as a replacement, but I don’t know what CM length or highbridge/lowbridge to order.
How long is the pendulum on that unit from tip to tip when it is off of the clock?
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
I have an Early 1970’s Montgomery Ward Grandfather clock with 3 weights. Itis is a floor model. The clock just froze up and I oiled it with clock oil, but it never kept running after I started it up. I tried several times. THE MODEL NUMBER IS CCM 9091 A Is their anyone that can fix or replace the moving parts for this clock?? Thanks for return information. If there is a complete replacement Kit please give me price or Email me at [email protected]
Hi,
What are the numbers off of the back plate of the clock movement itself? If it is hard to get to, usually you can stick a cell phone up behind the movement and get a picture of the numbers. Or through the side access panel if there is one.
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
Excellent movement, thank you!
Glad it worked out
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
Works great thank you
Great job getting the clock running
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
I have a salvaged Emperor 451-050 clock in a grandmother case. The weights have been tampered. Are all three weights the same. How much should they weigh?
Hi
Clock needs 1 weight at 4.7LBS and two weights at 6.6LBS from this link if the pendulum bob is 8.5 inch or more.
https://www.clockworks.com/clock-parts/clock-weights.html
Clock needs 1 weight at 6.6LBS and two weights at 4.7LBS from this link if the pendulum bob less than 8.5 inch wide
https://www.clockworks.com/clock-parts/clock-weights.html
The heaviest weight would go on your right as you face the clock.
The lightest weight will go on your left as you face the clock.
The middle is light or heavy depending on the bob diameter.
(The larger bob diameters require more weight in the center.)
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
what is high bridge and low bridge?
See pics and read this link to understand
https://www.clockworks.com/product/new-451-050-clock-movement-by-hermle
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
Does this movement feature a shut off switch?
Yes it has a chime off lever
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
All I need replaced is the chime hammer movement on the right side
Hi,
We offer chime hammer heads at this link
https://www.clockworks.com/product/clock-chime-hammer
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
I have been given a 75 Franz Hermle 451-050 clock. The chains were off it it. I have figured out how to put on the “outside” chains but can’t figure how to put on the middle chain. Any help will be greatly appreciated.
The movement would have to come out for the center chain to be replaced on the clock movement. Because the clock is made in 1975 it is time to swap it out for the new one anyway. These are 25 year units, 30 years at best before restoration is needed. A new unit is a fraction of the price and will last much longer than even the best restoration.
See instructions on removing and installing the unit here
https://www.clockworks.com/mechanical-chain-driven-movement-only-instructions.html
The new movement can be ordered here
https://www.clockworks.com/product/new-451-050-clock-movement-by-hermle
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
I have just purchased a grandfather clock with a Hermès movement but it is missing the second hand and shaft or tube along with possibly missing a gear that connects the movement to the moon dial gear train. Where can I get replacement parts. The movement number is 471-50. 94cm/66
Hi,
Grandfather clock second hands are located at this link
https://www.clockworks.com/product/second-hand-for-grandfather-clocks
The moon gear is located at this link
https://www.clockworks.com/product/hermle-clock-moon-gear
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
hermle 451-050 94cm
Clock centre weight does not ratchet up/hold weight to wind spring.
will plummet , will wind/ratchet if cog is prevented from turning, still will not hold weight to be able swing pendulum.
I notice the rhomboidal part with 2 hooks will advance only if slight pressure on minute hand is applied,kind of like the tick tock which is described .
assume if the part is wound correctly the weight would power this to allow momentum to coninue.
Was given the clock and ignorant about chains etc.
Weights pendulum removed and clock laid on back for transportation.
The right hand weight is the heaviest , left and centre same.
Hi,
Best to check the date code on that one and refer to this link
https://www.clockworks.com/clock-movement/hermle-clock-movement.html
If the clock is 20 years old or more, best to get the new one from this link
https://www.clockworks.com/product/451-050h-hermle-clock-movement
The ratchet wheel would require the movement to come apart. The new one is best, but if insisted we can do the work here.
Starts by sending it in for a cleaning as described at this link
https://www.clockworks.com/clock-repair-service.html
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
The ratchet wheel replacement needs the movement to come out. If taking the movement out, it can be just replaced. It is fast and not expensive.
Please order the 451-050 94cm from this link
https://www.clockworks.com/product/451-050h-hermle-clock-movement
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
Do you have a Hermle 451-050 55cm???
Yes we can make a 451-050 unit into a 55cm movement no problem. There will be an added regear cost of $100. So the movement price with the regear is $415
Please call in your order to 1 800 381 7458
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
I am confused with these clock weights. Front and center it says specifically 4.7,4.7, and 6.6. Yet when I go to the page for specific clock mechanisms every listing simply says 5 lbs. The clock I have came with weights of slightly over 5 lbs. so should I continue with the 5 lb weights or change them out for the specific listings? This clock is quite old but has never been run and been stored away.
5lbs is fine, its not needed to be exact.
See this link and see the weight specs tab for your movement:
https://www.clockworks.com/product-category/all-clock-parts/mechanical-grandfather-clock-weights
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
5lbs is close enough for the time and strike, need more on the chime side unless the back of your clock says Jauch of Germany. If Jauch, around 5lbs is fine
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
Does the Hermle 451-050 replacement movement include chains?
Yes it sure does
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
It sure does yes
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
I have an old Emperor clock with the Hermle movement. It is keeping perfect time, but the chimes play an extra bar or two on the hour and do not chime on the quarter hour. It seems to strike once on the hour while the chimes are playing the extra bars. I paid $125 for it and the case looks great as well as the face. I think I am going to tinker with it for a while, understanding that the movement is at the end of it’s life. I think a new movement will likely outlast me, so I have you bookmarked. The information here is great as well as your prices!
Hi
Please view this post I made on that topic below, if the chimes are set right the strike will be fine after Iam sure https://www.clockworks.com/posts/grandfather-clock-chimes-forever-correction
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
You’re the greatest! I will have to give it a try. When it comes time to replace the movement, and I know it will, this is the only place I will look. Thanks again!
Awesome – Thanks James
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
why wont my451-050H keep running it will run for a few minutes then stop . it is clean and oiled. what are the disck on the suspension arm are they adjustable ?
*HOW TO PUT A CLOCK IN BEAT. * (No pendulum clock that is mechanical will ever run without being put into beat. It is fast and easy to do)
*Mechanical clock movement beat-setting* Mechanical clock movement beat-setting means the tick and the tock sound of the clock is evenly spaced. Every pendulum clock that is mechanical needs to be put in beat to run. It is amazing how many clocks in the world have not run for 10 years or more just because this is not known. Often clocks in tag sales, auctions, and homes only needed to be put in beat to run but was left unused for years. The setting of the beat is easy and takes less than a couple minutes to do.
*Every mechanical pendulum unit needs it* Every mechanical clock that has a pendulum needs to be in beat to function.
Part of owning a clock is to know how to do this. If you do not know how to do this whenever you move the clock from here to there it will stop after 5 – 10 minutes. Putting the clock in beat is very easy.
*Putting a post WW2 German clock in beat * Most modern German clocks are put back into the correct beat-setting by over swinging the pendulum. This is called Auto Beat and is in most post WW2 German clock movements. It’s the first thing for you to try. It is ok to try this even if the clock doesn’t have auto beat built in. If the clock sounds like ticktock ticktock, instead of tick-tock tick-tock, or even tocktick tocktick, instead of tick-tock tick-tock, it is not in beat. The clock may stop after 5 minutes or an hour if it is still not in beat and it can be heard an uneven tick and tock. If the clock has the correct beat it can be heard a rhythmic tick-tock tick-tock.
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
why wont my451-050H keep running it will run for a few minutes then stop . it is clean and oiled. what are the disck on the suspension arm are they adjustable ?
Please see this link on how to put a clock in beat
https://www.clockworks.com/posts/mechanical-clock-movement-beat-setting
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
i have a 1984 King Arthur with a 451-050 but cannot get the chimes to work. There is no switch on the face to put in silence or night mode…please help
Behind the dial it may have an arm at the 3 oclock location. The dial may or may not have the slot for it, but the arm maybe there behind the dial regardless. If it is there, up is silent and down is chimes on.
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
How does the moon dial work on this clock 451-050
Hi
There is one gear called a moon gear, this will run the entire gear system on the back of the clock dial. See the moon gear at this link https://www.clockworks.com/product/hermle-clock-moon-gear
James Stoudenmire
30yr Clockmaker
Author of Clockworks.com
